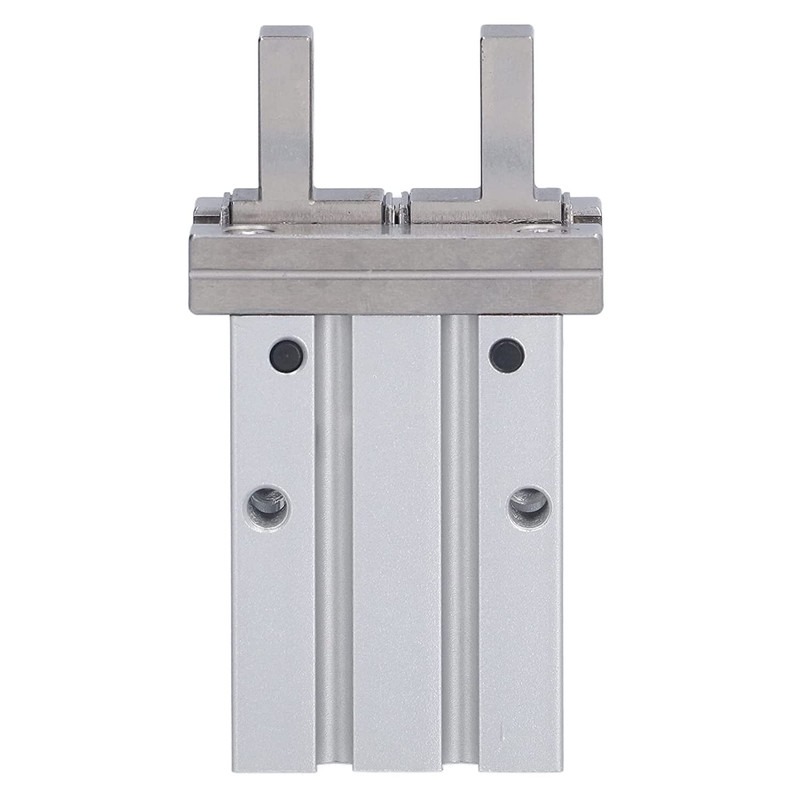

گریپر پنوماتیک مدل MHZ2‑16D

Material: Aluminum Alloy.
Model: MHZ2-16D.
Bore Diameter: Approx. 16mm / 0.63in.
Working Pressure: 0.1-0.7MPa.
Airs Inlet Thread: M5-0.8.
Claw Distance When Closed: Approx. 14.9mm / 0.59in (There is an error of ±0.3mm in manual measurement).
Claw Distance When Opening: Approx. 20.9mm / 0.82in (There is an error of ±0.3mm in manual measurement).
Stroke: Approx. 6mm / 0.24in.
Outer Diameter Clamping Force: 34N.
Inner Diameter Clamping Force: 45N.
Environment and Fluid Temperature: -10~60℃.
Repeatability: Approx. ±0.01mm / 0.0004in.
Maximum Frequency: 180c.p.m.
Give Oil: Not Needed.
Liquid: Airs.
Action Type: Double Action.

8x2x2 سانتی‌متر

آلومینیوم

0.7mpa

90 کیلوگرم
