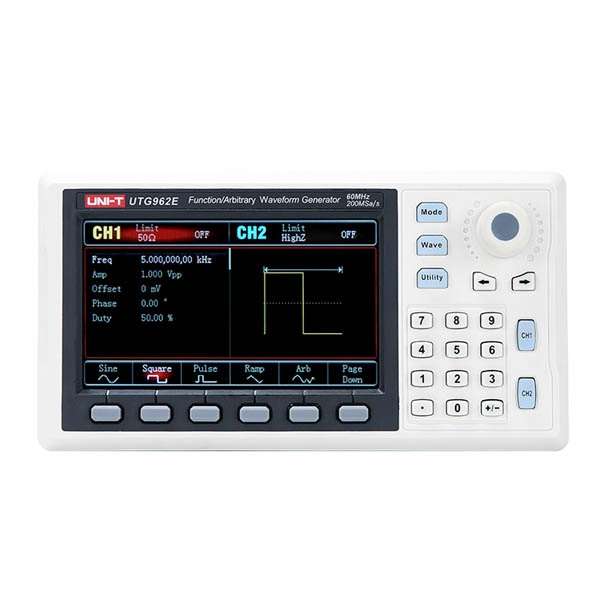

فانکشن ژنراتور یونی-تی مدل UTG962E

دو کانال خروجی مجزا
Channel 2
Max frequency 60MHz
Sampling rate 200MS/s
Vertical resolution 14 bits
Waveforms Sine, square, pulse, ramp, noise, DC, arbitrary
Sweep modes Logarithmic, linear
Frequency Characteristics
Sine 1μHz~60MHz
Square 1μHz~20MHz
Ramp 1μHz~400kHz
Pulse 1μHz~20MHz
Arbitrary 1μHz~10MHz
Resolution 1μHz
Accuracy Within 90 days ± 50ppm
Within 1 year ± 100ppm
18℃~28℃
Output Characteristics
Impedance 50Ω/High Z
Amplitude range 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)
DC offset range (AC+DC) ±5V (50Ω); ±10V (high Z)
Amplitude resolution 1mV
General Characteristics
Power 100~240VAC, 50Hz/60Hz
Display 4.3”TFT LCD (480×272)
Product color White and grey
Product net weight 0.33kg

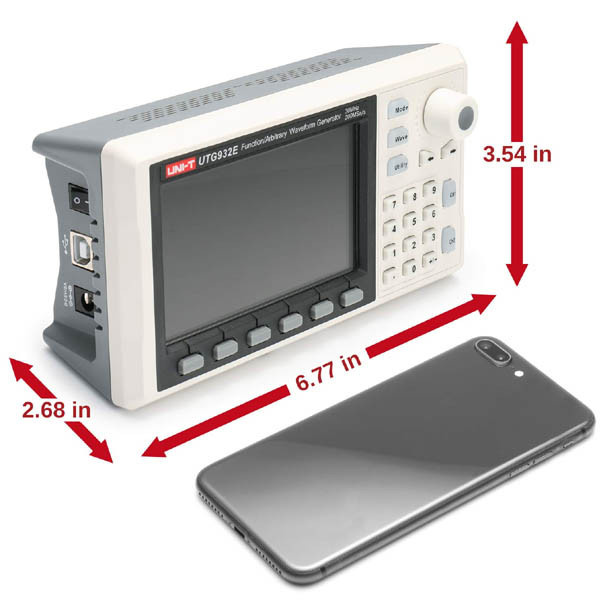

Product size 172mm x 90mm x 68mm
Standard accessories USB interface cable, power cord, BNC cable
