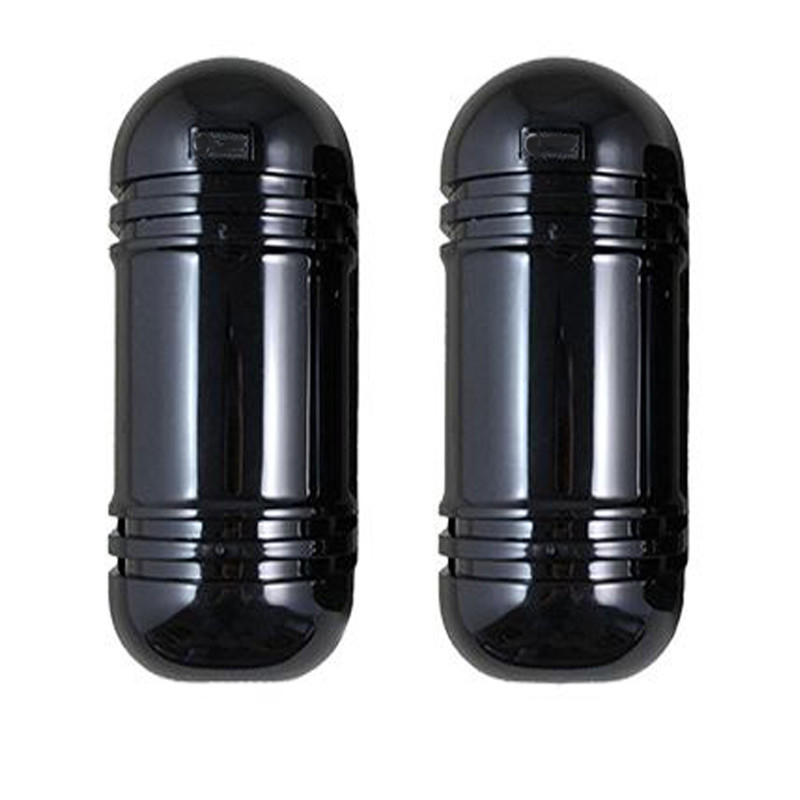

سنسور دزدگیر اماکن مدل ABT-60 بسته 2 عددی

15x10x8 سانتی‌متر

800 گرم

Supply Voltage DC :10.5 – 28V
Current Consumption :55 mA Max.
Temperature Range :-25°C – 55°C
Dimensions (H X W X D) :171 X 82 X 77 mm
Indoor Protection Distance : 60 m
Outdoor Protection Distance: 180 m
Max. Arrival Distance :650 m

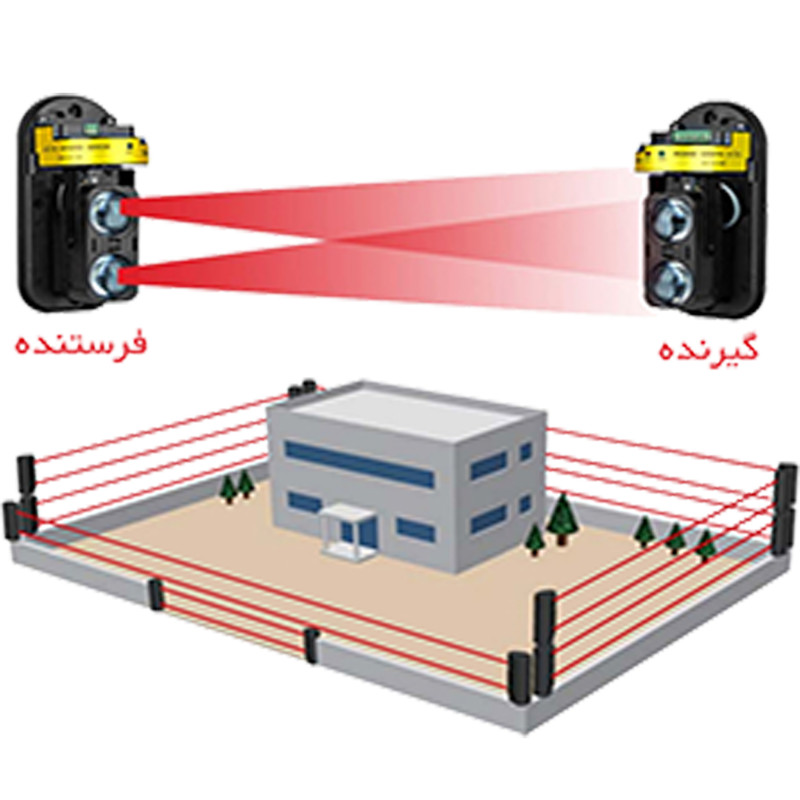

Infrared Beam:2 Beams
Detection System :Simultaneous cut-off of 2 beams
Light Source: Infrared LED
Response Time: 50-700 m/sec
Alarm Signal :Form ‘C’ (SPDT) relay contacts
Tamper Range :Form ‘B’ (SPST) relay contacts
Optical Axis Adjustable Angle (Horizontal): 180° (±90°)
Optical Axis Adjustable Angle (Vertical): 20° (±10°)
Collimator :Viewfinder with peep window
Measure for Moisture/Frost :Sit type cover
Other Additional Functions:Alignment LED and Monitor Jack
Material :ABS Plast

دفترچه راهنما
