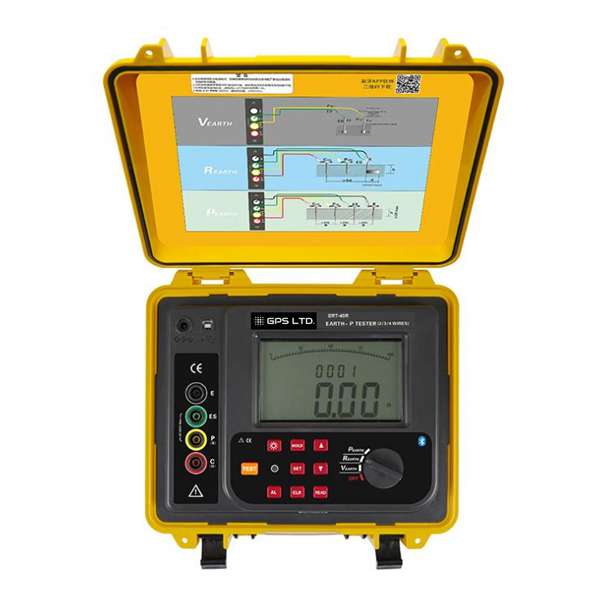

ارت سنج جی پی اس لیمیتد مدل ERT-40R

Protection Level IP65(close the case)

DC 7.4V 2600mAh rechargeable lithium battery, full of about 8.4V

باتری

0.00Ω-30.00kΩ

4-digital super-large LCD display, white screen backlight
128mm×75mm

ندارد

ندارد

شارژر ، میله ارت و کابلهای مربوطه ،، کابل اتصال به PC و نرم افزار ، دفترچه راهنما و کیف حمل و گواهي كاليبراسيون

±2%rdg±3dgt

Electromagnetic
Features IEC61326(EMC)
Protection Type
IEC61010-1 (CAT Ⅲ 300V 、 CAT IV 150V 、 Pollution 2),
IEC61010-031, IEC61557-1 (Earth resistance), IEC61557-5 (Soil
resistivity), JJG 366-2004

ERT-40R Earth Resistance Soil Resistivity Tester is specially designed and
manufactured for on-site measurement of earth resistance, soil resistivity, earth
voltage. Apply digital processing technology, precision 4-wire method, 3-wire method
and simple 2-wire method to measure grounding resistance; Adopt FFT (fast Fourier
transform) technology, AFC (automatic frequency control) technology, automatic
identification of interference and selection of measurement frequency, to minimize the
impact of interference, provide more accurate earth resistance value. With unique
anti-interference ability and environmental adaptability, high repeated test consistency,
ensuring high precision, high stability and high reliability for long-term measurement.
The tester case is made of waterproof protection box, anti-collision, anti-drop,
waterproof (protection grade IP65), strong and durable, and also equipped with a
large-capacity rechargeable lithium battery pack, especially suitable for outdoor
construction. Widely used in power, telecommunications, meteorology, oil fields,
construction, lightning protection and industrial electrical equipment, such as
grounding resistance, soil resistivity, grounding voltage.
ERT-40R Earth Resistance Soil Resistivity Tester is composed of host
machine, monitoring software, testing wires, auxiliary ground pillars, communication
wires etc. The large LCD display of host machine, with white backlight and bar graph
indicating that can be seen clearly. At the same time it can store 300 sets of data,
fulfilling historical inquiry and online real-time monitoring through monitoring software,
dynamic display, alarm indicator, and with the functions as historical data access,
reading, preservation, report forms, printing and so on.
