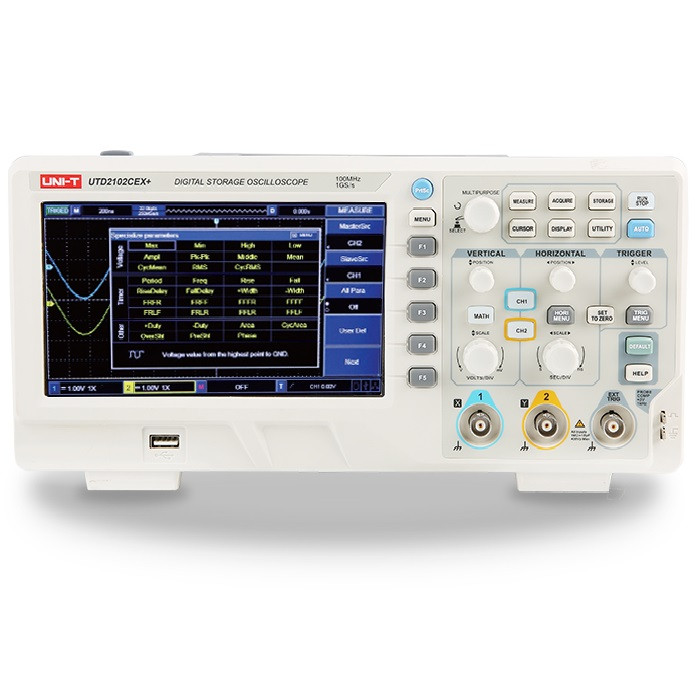

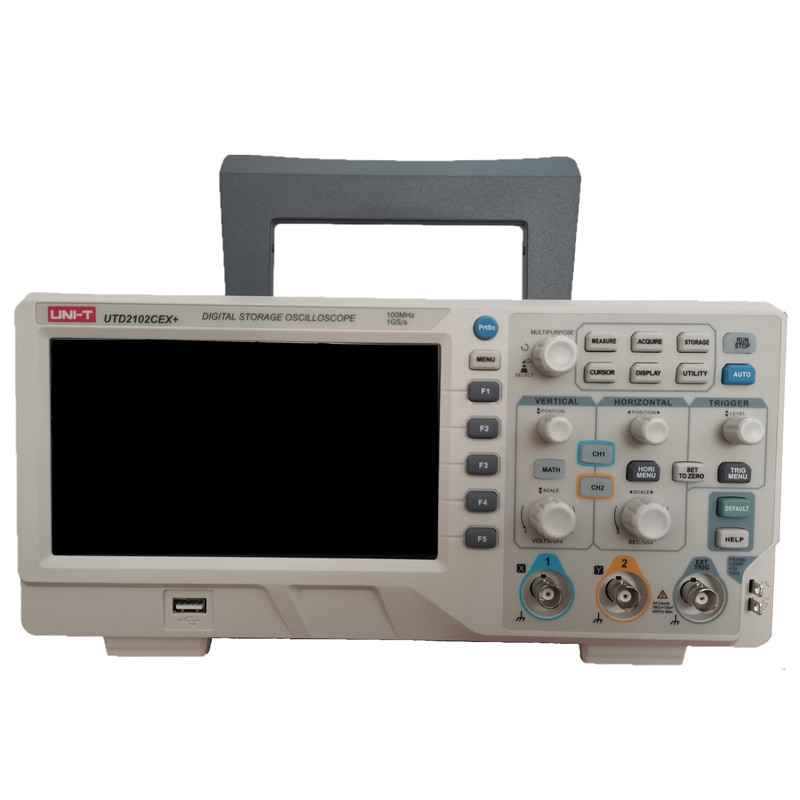

اسیلوسکوپ یونی-تی مدل utd2102cex plus

دو کانال
دارای کلید تنظیم اتوماتیک موج
پهنای باندگسترده 100 مگاهرتزی
نرخ نمونه برداری یک میلیارد نمونه بر ثانیه
Model UTD2102CEX+
Channels 2
Bandwidth 100MHz
Sampling rate 1GS/s
Rise time ＜3.5ns
Memory depth 64kpts
Waveform capture rate >5, 000wfms/s
Vertical scale (V/div) 1mV/div~20V/div
Time base scale (s/div) 2ns/div~50s/div
Timing accuracy ≤±（50+2 × service life ）ppm
Time base mode Y-T、X-Y、Roll
Storage methods Setup, wave, bitmap
Trigger types Edge, pulse width, alternate，Slope, video
Mathematical operations ＋, －, ×, ÷, FFT
Auto measurements Pk-Pk , Ampl, Max , Min, Low, Middle, High, Mean, RMS，OverSht,, PreSht, Period, Frequency、Rise, Fall, +Width，-Width, -Duty, +Duty,Delay,Phase，FRR,FRF,FFR,FFF,LRR,LRF,LFR,LFF,34 paramet ers in total
Displayed measurements Display 5 measurements at the same time
Frequency counter 6 bits
Interface USB OTG,Pass/Fail
General Characteristics
Power 100-240VAC, 45-440Hz
Display 7 inches TFT LCD, 800×480
Product color White and grey
Product net weight 3.5kg
Product size 336mm×164mm×108mm
Standard quantity per carton 2pcs
Standard carton measurement 450mm x 420mm x 280mm
Standard cartoncessories power cable
UT-D05:USB interface cable
UT-P04:Passive Probe x 2 (1x,10x switchable,100MHz)
gross weight 8kg
Ordering Information
UTD2102CEX+,100MHz,1GS/s,64kpts,2-Channel)
User manual and Communication4s control software(Electronic file)
Optional accessory UT-M01:LAN module
